One Flexible Platform with Diverse Fingerprint Sensors (FAP20/30/45/50)
The RP1600X + eID10 Series is a compact and modular biometric handheld terminal engineered for flexible identity verification
across diverse field applications.
With its 4.3inch Handheld form factor and snap-on eID10 modules, it offers a highly customizable and lightweight
solution for fast and reliable eID & Biometric verification and authentication. The RP1600X is ideal for border control (ferry terminal/train/land border),
law enforcement, civil enrollment, elections, and corporate visitor or employee identification especially where mobility and simplicity are prioritized.
| Key features : |
| • Snap-on modular design supporting various Fingerprint modules • Multiple fingerprint module options: FAP20 / FAP30 / FAP45 / FAP50 (interchangeable via snap-on modules) • Dual iris recognition support • MRZ reader for passports and travel documents • Contact and contactless smart card reader • HID iClass / Seos reader • 1D/2D barcode scanner and magnetic stripe reader (MSR) • Compact form factor for One-Handed operation |
By allowing users to interchange fingerprint modules with different FAP levels (20/30/45/50) on a single Handheld Device(RP1600x), The RP1600X enables flexible selection of fingerprint sensor sizes, allowing support for multiple FAP standards based on operational requirements. Unlike larger 7-inch tablets like the Gen2wave’s RP70A BIO, the RP1600X is optimized for lightweight, fast processes rather than complex workflows—making it an excellent choice for quick ID verification in high-mobility environments. Built on Android OS, the RP1600X supports secure 4G LTE, WiFi, and Bluetooth connectivity, and is engineered with field-ready durability to withstand demanding conditions.
A compact and mobile identity verification solution combining the RP1600X + eID10 Series smart ID reader with modular fingerprint scanning compliant with FAP20/30/45/50 standards via snap-on modules. Designed for high-speed authentication in the field, it supports both biometrics and contact/contactless ID cards as well as passports. Optimized for fast-paced environments such as ferry terminals, train stations, and land border checkpoints, where its professional-grade MRZ scanner and NFC reader enable swift and accurate passport verification even for travelers in motion.
| Use Cases : Border control, Immigration office, government services, military services, mobile registration, on-site ID verification |
| Key Functions : MRZ reading, Contact & contactless ID reading (IC, RFID/NFC), passport (MRZ) reading, Dual Iris, fingerprint scanning and Facical recognition |
| Advantages : • Ultra-portable 4.3" PDA for easy one-hand operation • Modular biometric support for various FAP standards (20/30/45/50). • Seamless integration of eID and biometric data for fast, real time authentication |
EID10 PLUS (FAP20)
MSR
OCR / MRZ
Fingerprint(FAP20)
Barcode Scanner
Dual Iris Scanner
Facial Recognition Camera
IC CHIP Card Reader
G2W proprietary RFID Reader
Specialized for eID & e-Passport
Integrated SAM Card Slot
EID10 Alpha (FAP45)
Fingerprint (FAP30/45/50)
Barcode Scanner
Dual Iris Scanner
Facial Recognition Camera
IC Chip Card Reader
NFC
HID iClass Reader
Integrated SAM Card Slot

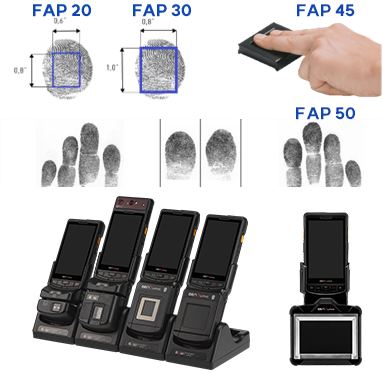

Snap-on(eID10 Series) Design Allows Easy Function Switching Based on Operational Needs
Supporting from one finger verification to 4-4-2 enrollment.
Accessories sharable (Battery, 1 slot & 4 slot Desktop Cradle, etc.)
Streamlining application development/upgrade & update and device management

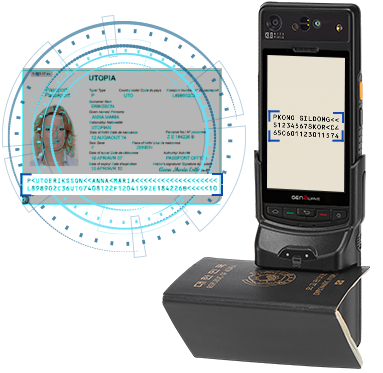

Highly Effective, Reliable and Accurate Reading
Unlike camera and 2D Imager-based readers,
its performance is not affected by
light reflection on the MRZ page.
Moreover, operators are not required to adjust
the distance between the document and
camera or 2D imager, which causes a lot of time
consuming and reduces productivity.
Enabling the reading of all kinds of ePassport chip data in prompt (2-3 sec) and reliable manner.
tested with 120+ countries’ ePassports
Normal NFC reader takes 10-12 sec. and it cannot read
most ePassport due to shielding on a passport
1 Slot Cradle
4 Slot Cradle
Power Supply Unit
Leather Case

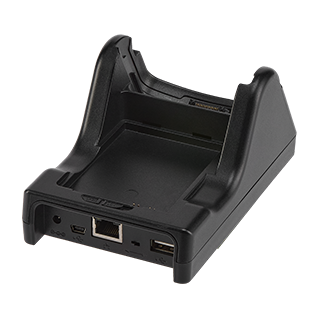

1 Slot Cradle_Ethernet
1 Slot Cradle_4000mAh Battery
Stylus and Coiled string

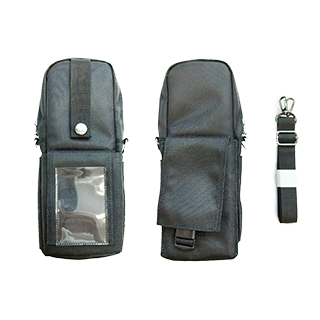

Fabric Protection Case
| Performance Characteristics | ||||
|---|---|---|---|---|
| CPU | 1.8 GHz Hexa-core processor | |||
| OS | Android 11 | |||
| Memory | RAM 4GB, ROM 32GB | |||
| Physical Characteristics | ||||
| RP1600X | FAP50 + RP1600X | FAP45 + RP1600X | FAP30 + RP1600X | |
| Dimensions | 147mm(H) X 78mm(W) X 21mm(D) | 240mm(H) x 117mm(W) x 43mm(D) | 228mm(H) x 82mm(W) x 33mm(D) | 228mm(H) x 82mm(W) x 33mm(D) |
| Weight | 300 gram with standard battery 340 gram with extended battery (4000mAH) |
610 gram with extended battery (4000mAH) |
478 gram with extended battery (4000mAH) |
468 gram with extended battery (4000mAH) |
| Display | 4.3 inch WVGA (Sunlight readable)/480 X 800 (Capacitive touch) |
|||
| Input | 5 Front Key / 5 Side key | |||

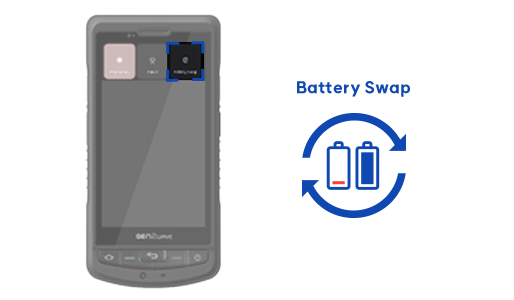

| Battery | Standard battery / 2860mAh Li-ion : Contact Smart Card Reader (optional) Extended battery / 4000mAh Li-ion : Contact Smart Card Reader (optional) Built-in Backup Battery / 200mAh Li-Polymer Hot-Swap available |
|||
| Communication Interface |
Host : USB2.0 High Speed Client : USB 2.0 High Speed External Serial RS232C RJ45 Port (1Slot/4Slot Ethernet Cradle) * Only USB Client operates when installing EID 10 PLUS / Alpha |
|||
| Notification | Vibration and Charging LED, Noise when certain icon is tapped on screen |
|||
| Audio | Speaker / Receiver / MIC | |||
| Expansion Slot | Micro SD card (up to 2T B) | |||
| User Environment | |
|---|---|
| Operating Temperature |
-20 ℃ ~ +60 ℃ (-4˚F~140˚F) |
| Storage Temperature |
-30 ℃ ~ +70 ℃ (-22˚F ~158˚ F) |
| Humidity | Non-condensing, 93% |
| Sealing | IP64 |
| Drop Spec | 1.5M drop to concrete |
| Wireless Communication | |
| Wireless(WWAN) | Gemalto PLS8-E : LTE, HSPA+, EDGE, GPRS LTE : 800, 900, 1800, 2600Mhz HSPA+ : 900, 1800, 2100Mhz GSM/GPRS/EDGE : 900, 1800Mhz |
| Wireless LAN | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth V4.2 BLE + HS (BT Headset support) |
| GPS | A-GPS (Ublox-7 Series) |
| Data Capture | |
| Finger Print | FAP30 / 45 / 50 Integrated Biometrics |
| Iris Scanner | Dual Iris Scanner Image Sensor : 5MP(2592 x 1944), B&W, CMOS Sensor Frame Rate : 30 fps @ 2592 x 920 Operating Distance : ~ 300mm Iris Resolution : Over 300 pixel Image Quality : ISO/IEC 19794-6 / High Level With Glasses : Yes |
| Contact Smart Card | IC Chip Card Reader |
| NFC | Near Field Communication Tag Reader ISO 14443 A/B, Mifare Desfire, ISO15693 Card support 2 SAM Slot |
| HID RFID Reader |
HID OMNIKEY 13.56 MHz HF / 125 KHz LF RFID HF Transmit Frequency 13.56 MHz +/- 50 ppm Smart Card Technologies: ISO14443A/B ISO15693, FeliCa™ (IDm), CEPAS (CSN) |
| Barcode Scanner | 1D Laser | 2D Imager Zebra SE965 | Zebra SE4750 |
| Camera | 13.0MP Auto Focus, Flash |
| Fingerprint Sensor | |||||
|---|---|---|---|---|---|
| EID10 Alpha | * EID10 PLUS | ||||
| FAP50 | FAP45 | FAP30 | FAP20 | ||
| Fingerprint Scanner |
Sensor Type | LES (Light Emitting Sensor) | LES (Light Emitting Sensor) | LES (Light Emitting Sensor) | Optical |
| Resolution | 500ppi | 500ppi | 500ppi | 500ppi | |
| Supplier | Integrated Biometrics | Integrated Biometrics | Integrated Biometrics | Suprema | |
| Model | Five-O | Sherlock | Danno | BM-Slim2 | |
| Sensing Area | 3.38" x 2.12" | 1.6" x 1.5" | 0.8” x 1.0” | 0.6” x 0.8” | |
| Fingerprint Capture |
FBI Certification | FBI Appendix F-certified, Mobile ID IQS FAP 50, GSA FIPS201 |
Mobile ID IQS FAP 45, PIV, GSA FIPS 201, FBI Appendix F |
PIV 071006, FIPS 201, FAP 30 / Certified to Mobile ID Requirements |
FBI PIV and FBI Mobile ID FAP 20 |
| Capture | Flat / Rolled | 2 fingers Flat / 1finger Rolled | 2 fingers Flat | 1 finger Flat | |
| Dual Fingerprint | Yes | Yes | N/A | N/A | |
| 4 4 2 | Yes | N/A | N/A | N/A | |
| Fingerprint Image Output |
Image Size | 1600 x 1000 pixels | 800 x 750 pixels | 400 x 500 pixels | 300 x 400 pixels |
| 256 gray scale | Yes | Yes | Yes | Yes | |
| Bitmap raw format | Yes | Yes | Yes | Yes | |
| WSQ Compression Ratio |
RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved) |
RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved) |
RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved) |
RAW, BMP, WSQ, ISO 19794-4 (FBI-approved) |
|
| Dual Iris Scanner | |||||
|---|---|---|---|---|---|
| Image Quality Standards |
Image Sensor | 5MP(2592 x 1944), B&W, CMOS Sensor Frame Rate : 30 fps @ 2592 x 920 |
|||
| Operating Distance |
~ 300mm | ||||
| Iris Resolution |
Over 300 pixel | ||||
| Image Quality |
ISO/IEC 19794-6 / High Level |
||||
| With Glasses | Yes | ||||
| OCR (MRZ Reader) | |||||
| Model | OCR310e | ||||
| Standard OCR Fonts | OCR-B and E13B | ||||
| Machine Readable Passports(MRP) |
2 lines of 44 characters | ||||
| Machine Readable Visas(MRV) |
2 lines of 44 characters, 2 line of 36 characters | ||||
| Travel Documents | 2 lines of 36 characters, 3 line of 30 characters | ||||
| ID Document | 1 line of 30 characters, 2 lines of 36 characters, 3 lines of 30 characters | ||||
| MRZ stripe speed | up to 100cm/sec | ||||
| OCR decoding | up to 0.3 second Field of view object height: 19.6 mm nominal | ||||
| Field of View Object Height | 19.6 mm nominal | ||||
| Depth of Field | 1.5 mm maximum from imager window | ||||
| 2D Barcode Scanner | |||||
| Barcode Scanner | 1D Laser | 2D Imager Zebra SE965 | Zebra SE4750 |
||||
| NFC | ||
|---|---|---|
| PN548 / C2 | Compliant Standards |
NFC Forum, NCI, ETSI/SCP |
| Transmission Modes Specification |
NFCIP-1 NFCIP-2 ISO/IEC14443 ISO/IEC15693 MIFARE FeliCa |
|
| Output Stage Range |
3.0V~4.5V | |
| HID RFID Reader |
HID OMNIKEY 13.56 MHz HF / 125 KHz LF RFID HF Transmit Frequency 13.56 MHz +/- 50 ppm Smart Card Technologies: ISO14443A/B ISO15693, FeliCa™ (IDm), CEPAS (CSN) |
|
| IC Chip Card Reader | ||
| GemCore Pos pro Chip |
Certification | ISO 7816 certification |
| Global eID & ePassport RFID Chip reader | ||
| Standard | ISO 14443 A & B Parts 1-4, MIFARE® | |
| Operating Frequency |
HF, 13.56MHz | |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL Optimized for e-Passport and eID card RFID chip |
|
| It is our proprietary reader with powerful antenna. All kinds of ePassport RFID chip readable in prompt and reliable manner. |
||
Law Enforcement & Public Services

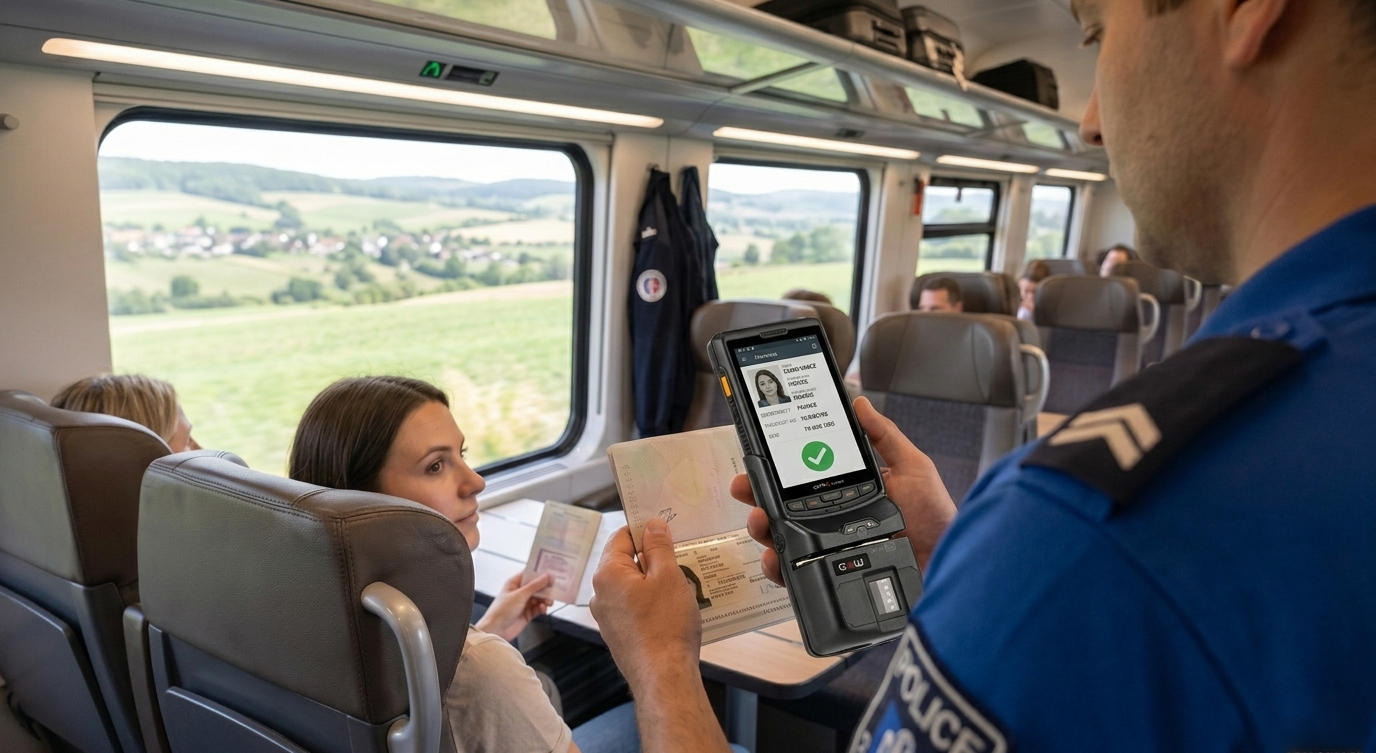

Onboard Immigration inspection (Train, Ferry and Bus)
Military Service
Border Control
eKYC
Compulsory ID Registration
Membership Management and Customer Registration
Voting and Ballot Box
